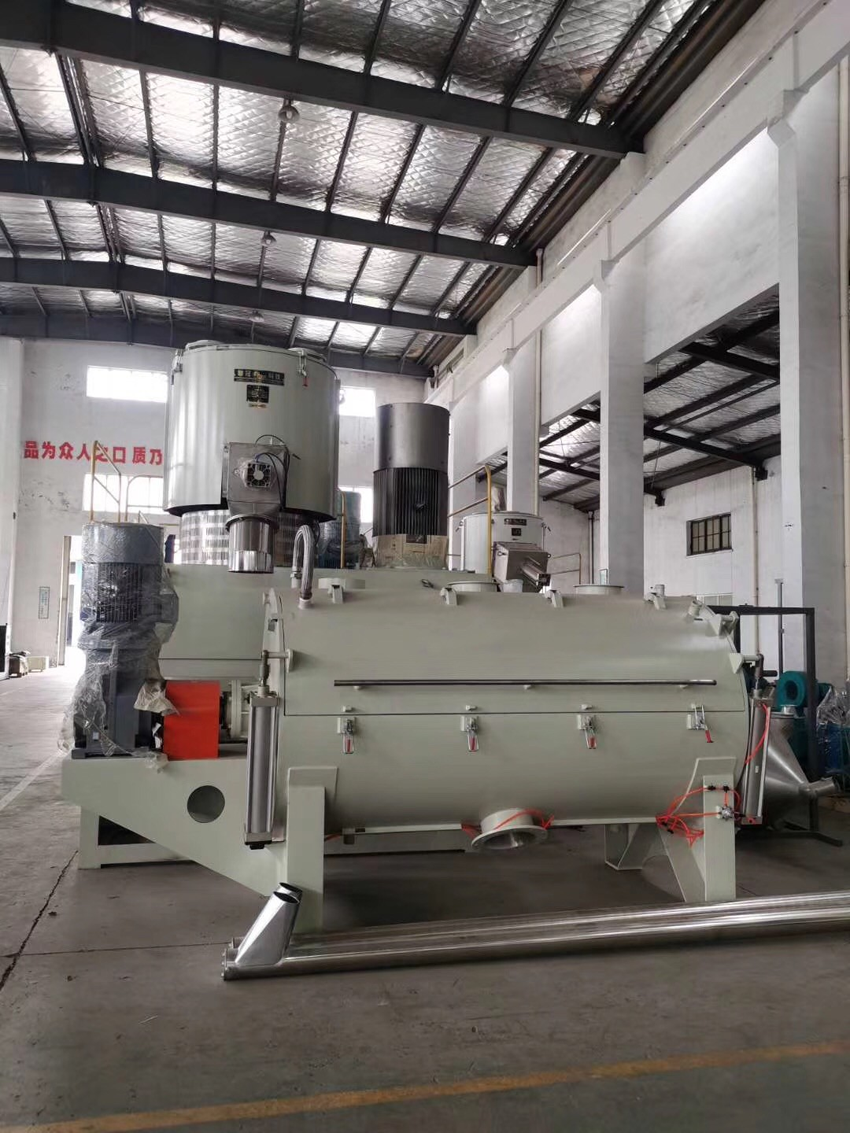

Heat and cool plastic mixer is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.
Features:
▲ All parts contacted with material is SS304 and material will not be contaminated.▲ High cooling efficiency, short mixing time. easy and convenient to clean, and can reach high output.
▲ Improved cooling efficiency and reduced water consumption.
▲ Equipped with the pulse dust-cleaning recovery device.
▲ Mixing tool coated with wear-resistant material, which can Increase service life and past dynamic and static balance test,running smoothly.
▲ Rapid,perfect after-sales service.
Main Technical Parameters:
Model | Bowl Volume Total/Effective | Motor Power(kw) | Blade Speed(RPM) | Batch Weight(kg) |
RH300 | 300/240 | 75/90 | 900 | 120 |
RH500 | 500/400 | 90/110 | 660 | 200 |
RH600 | 600/480 | 100/132 | 660 | 240 |
RH800 | 800/640 | 132/160 | 643 | 320 |
RH1000 | 1000/800 | 160/200 | 610 | 400 |
RH1200 | 1200/960 | 200/250 | 520 | 480 |
RH1500 | 1500/1200 | 250/315 | 490 | 600 |
RH2000 | 2000/1600 | 315/355 | 500 | 800 |
| Model | Bowl Volume Total/Effective | Motor Power(kw) | Blade Speed(RPM) |
LH1000 | 1000/700 | 15/18.5 | 117 |
LH1800 | 1800/1260 | 15/18.5 | 85 |
LH2100 | 2100/1470 | 18.5/22 | 75 |
LH3000 | 3000/2100 | 22/30 | 56 |
LH3500 | 3500/2450 | 30/37 | 51 |
LH4200 | 4200/2940 | 37/45 | 47 |
LH5000 | 5000/3500 | 45/55 | 41 |
LH6000 | 6000/4200 | 45/55 | 41 |
